Straight flatwork forms

dee's flatwork forms ensure a perfectly straight concrete placement every time. Available in heights from 4" to 7-1/2" in 12-gauge steel, and from 4" to 24" in 10-gauge steel, dee's straight flatwork forms are offered in standard 10-foot lengths with either 2" or 4" bases.

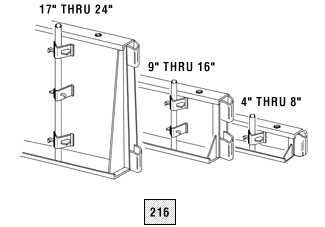

Straight flatwork forms - illustration

4" through 7.5" 12 GA material
8" and higher 10 GA material

Product
No.
Description
204

Straight forms with a standard 2" base, 2 pockets, with self-aligning noses and box ends 10' long

205

Straight forms with a standard 2" base, 3 pockets, with self-aligning noses and box ends 10' long

206

Straight forms, 10 GA material with a 2" base, 2 pockets

207

Straight forms, 10 GA material with a 2" base, 3 pockets

216

Straight forms, 10 GA material with a 4" base, 3 pockets

**For best results we do not recommend
2-pocket forms 12" high and over.

Optional sliding nose for straight forms - illustration

Flatwork straight forms - illustration 2

Transition forms, male and female, are available to transition to or from straight flatwork and radius flatwork forms.

Applications

dee Concrete's straight flatwork forms are perfect for most edge forming, sidewalks, patios, driveways, footings, industrial slabs, foundations, general flatwork, and in combination with our curb and gutter accessories, for all types of curb and gutter work.

top

Specifications/range of sizes

Available in heights from 4" to 7 1/2" in 12-gauge steel, and from 4" to 24" in 10-gauge steel, dee's straight flatwork forms are offered in standard 10-foot lengths with either 2" or 4" bases but can be obtained in lengths shorter than 10 feet on request.

dee straight flatwork forms are available with 2 or 3 pockets on up to a 12" height and only 3 pockets for form heights above 12".

View a table showing all available straight flatwork form sizes in both 10 and 12-gauge steel.

Standard Forms: 12-Gauge Steel

Height 2 Pocket 3 Pocket Base Width 2 Pocket 3 Pocket
4" X X 2" 37 39
5" X X 2" 40 42
6" X X 2" 45 47
7" X X 2" 50 52
7.5" X X 2" 53 55

X = Available

Custom forms available in 1/2" increments. All forms are available with a sliding nose option and optional dowel holes.

Standard Forms: 10-Gauge Steel
(All standard forms are 10' long)

Height 2-Pocket 3-Pocket Base Width 2" Base
2 Pocket
2" Base
3 Pocket
4" Base
3 Pocket
2" 4"
4" X X X X 45 47 55
5" X X X X 52 54 60
6" X X X X 57 60 66
7" X X X X 61 63 71
7.5" X X X X 64 66 73
8" X X X X 72 75 78
9" X X X X 77 80 85
10" X X X X 82 85 94
11" X X X X 87 90 99
12" X X X X 92 95 105
13" NA X X X NA 100 114
14" NA X X X NA 110 120
15" NA X X X NA 115 125
16" NA X X X NA 120 130
17" NA X NA X NA NA 135
18" NA X NA X NA NA 140
19" NA X NA X NA NA 145
20" NA X NA X NA NA 150
21" NA X NA X NA NA 155
22" NA X NA X NA NA 160
23" NA X NA X NA NA 165
24" NA X NA X NA NA 170

X = Available       NA = Not available

top

Features and benefits

dee Concrete Accessories manufactures a broad range of metal forms and accessories for horizontal concrete placement. dee straight flatwork forms:

  • Come standard with a full bull nose and are self-aligning requiring no time-consuming and non-productive latching, locking, or fitting providing faster and easier forming.

  • Can include an optional sliding nose that easily enters the reinforced box end of the adjacent form making setup and removal quick and easy saving labor man-hours.

  • Are manufactured with reinforced gussets and welded stake pockets making them the strongest concrete placement flatwork forms in the industry providing many years, even decades, of useful life minimizing replacement costs.

  • Have double flanges with full-height heavy steel angles providing extra form strength and ensuring long form life.

  • Include either 2 or 3 heavy-duty, welded-on, heavy 7-gauge steel stake pockets with captive wedges with a bent welded tip making setup and removal quick and easy and making broken or lost wedges a thing of the past.

  • Are all-welded, not riveted like many competitor forms, increasing the form strength and rigidity guaranteeing accurate forming and improving form longevity.

  • Are made with double flanges on the top and bottom of the form providing greater form rigidity and clear unobstructed areas making the forms both strong and easy to use.

  • Are stackable up to 24" high since the 4 factory-punched bolt holes in each rail make combining the forms quick and easy allowing contractors to do more jobs with fewer forms saving capital investment in forms while reducing form storage needs.

  • Include 4 factory-punched boltholes in each rail allowing quick and effortless attachment to various forming accessories like division plates, making the forms highly versatile and easy to use.

  • Taller than 8" in height are manufactured with two steel noses, welded between flanges, and reinforced with an angle increasing strength and improving flexibility by allowing both single and multiple sized forms to be joined easily and quickly. ß Available with either a 2" or 4" base providing added stability as required by the type or height of the planned concrete placement.

  • Are manufactured with standard 2" top rails, allowing their easy combination with competitors' forms by using dee's filler form accessory.

  • Are regarded as the industry standard. They have been often copied, but their quality and value have never been duplicated ensuring our customers are buying the best product available on the market!

Contact dee Concrete Accessories at 1-800-245-1333, fill out our contact form, or email us at info@deeconcrete.com to discuss your individual flatwork form needs or to identify a distributor in your area.
